Step 1

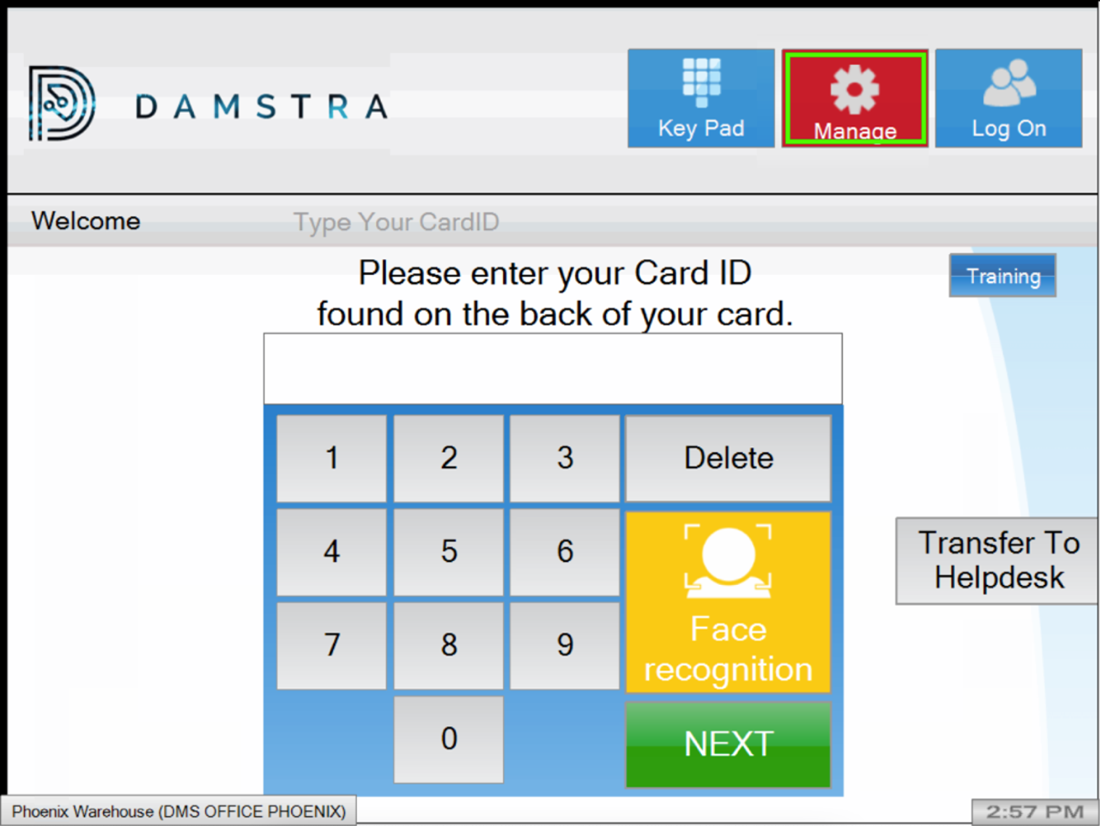

Approach a Terminal & tap the red “Manage” button on the screen, to access the Manage Menu.

Step 2

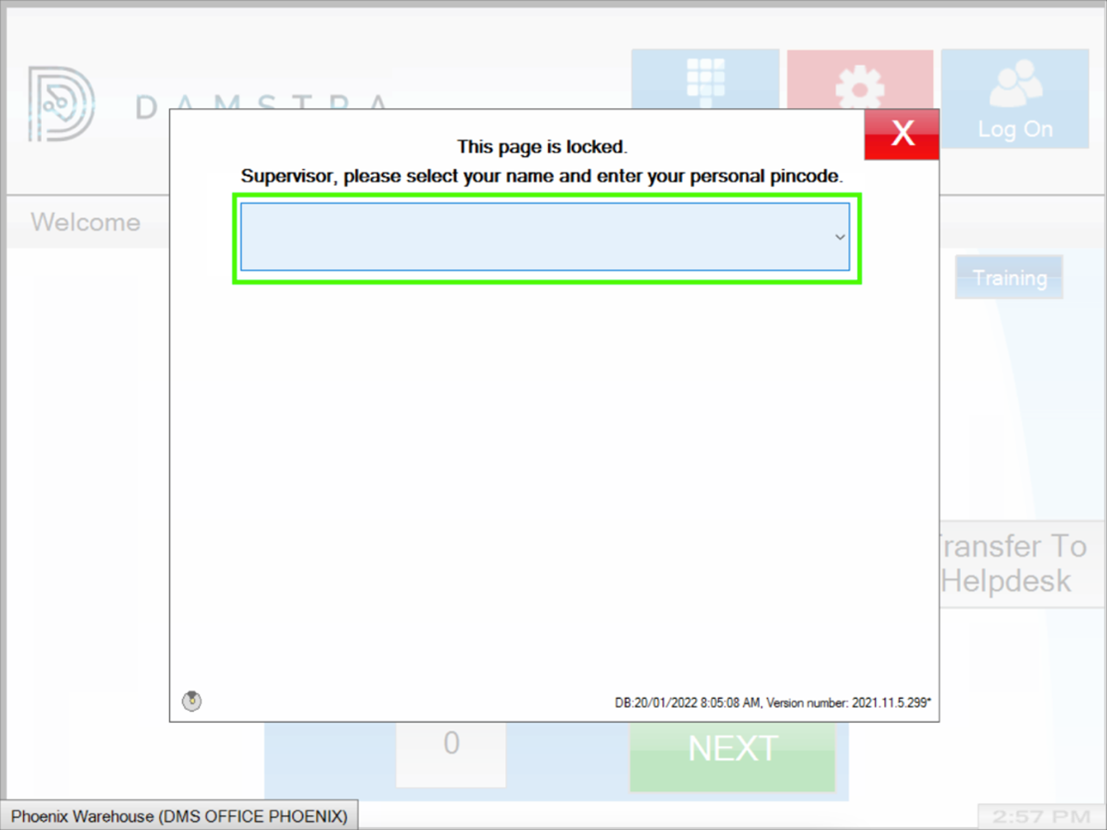

Press the drop-down bar, & then select the Supervisor / Manager from the list.
(For configuration of Supervisors & Managers, use TWMS / EPP, to add, remove or edit Users)

Step 3

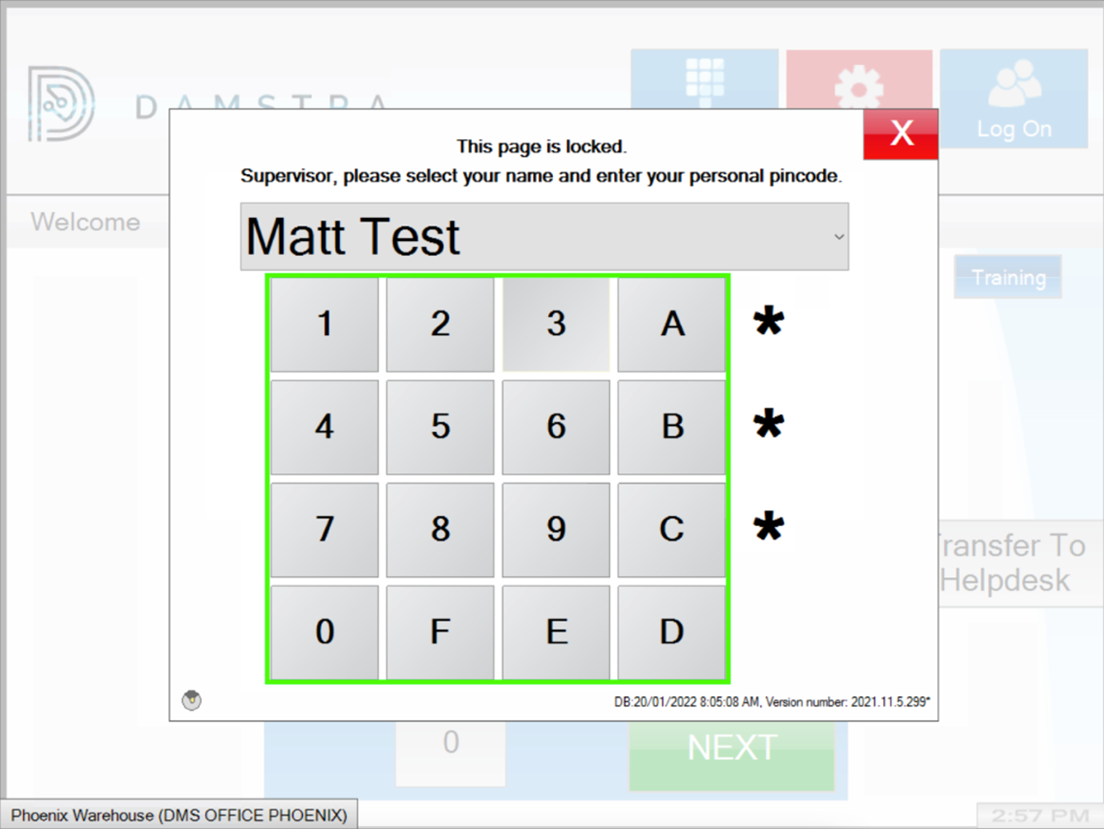

Using the touchscreen keypad, enter the Supervisor / Manager’s custom 4-digit pin number.
(For configuration of Supervisor’s & Manager’s pins, use TWMS / EPP, to add, remove or edit pin numbers)

Step 4

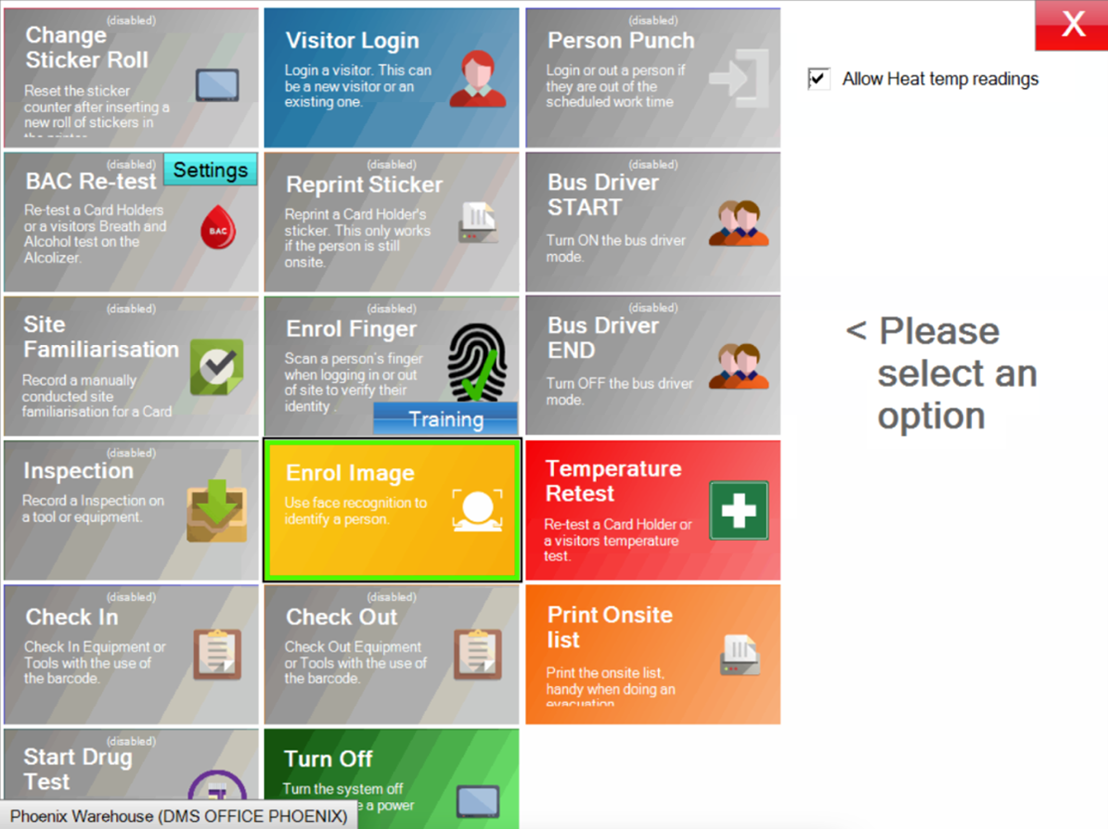

Tap the yellow “Enrol Image” button.

Step 5

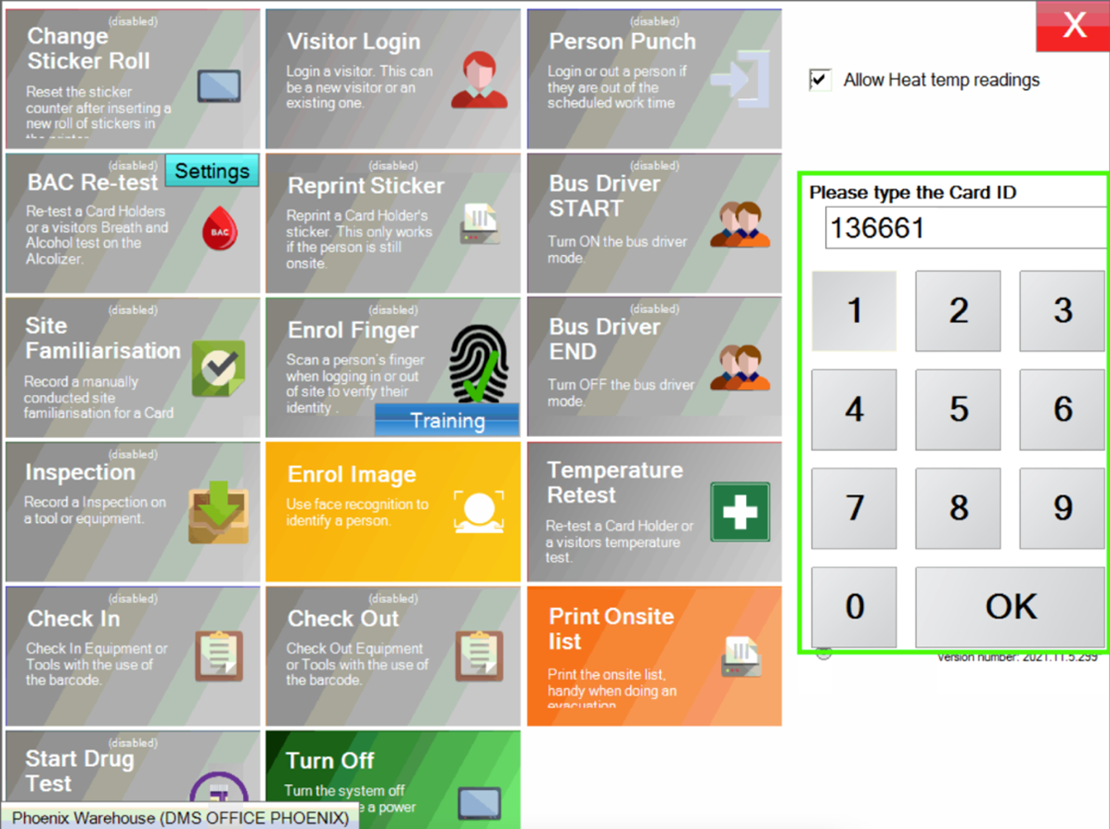

Using the keypad on the right, enter the ID number of the User who is to enrol their image, & press the OK button.

Step 6

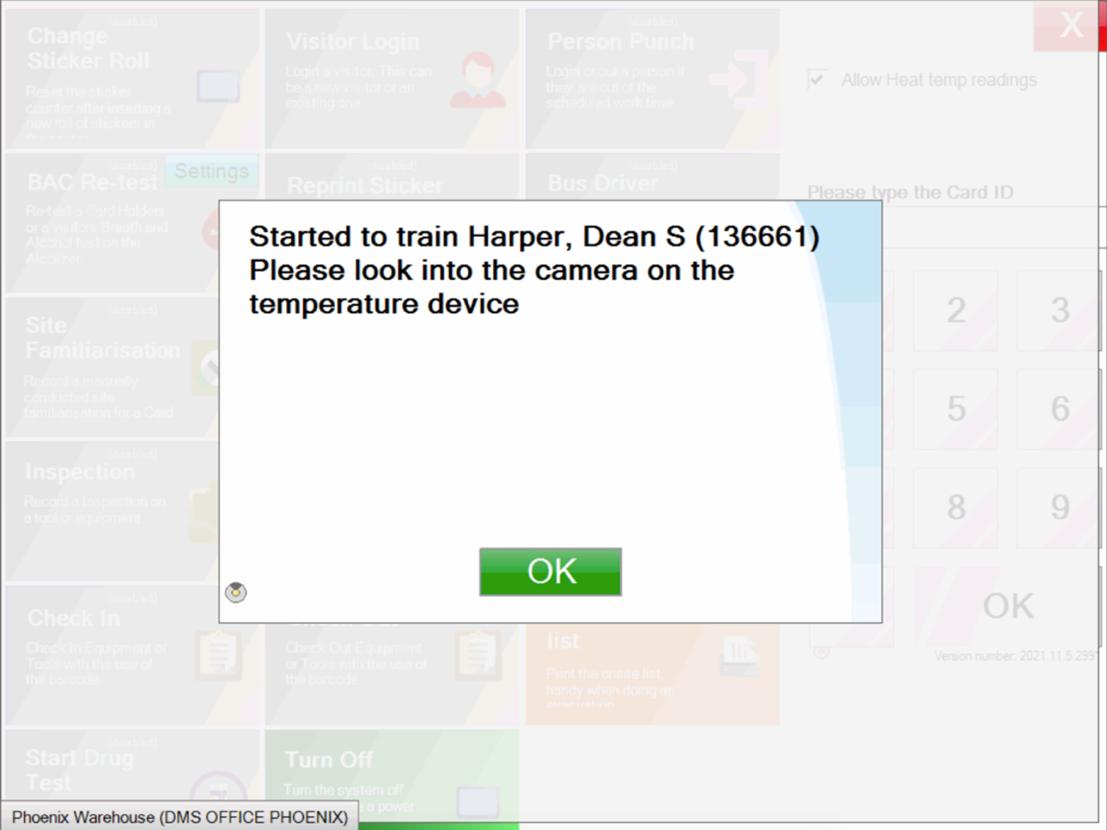

The enrolment process will begin.
Please have the user stand in front of the Camera, & wait for their ID number to appear on the Camera’s screen.

Step 7
Once the enrolment has been completed, the user’s name & ID number will show on the Camera’s screen.

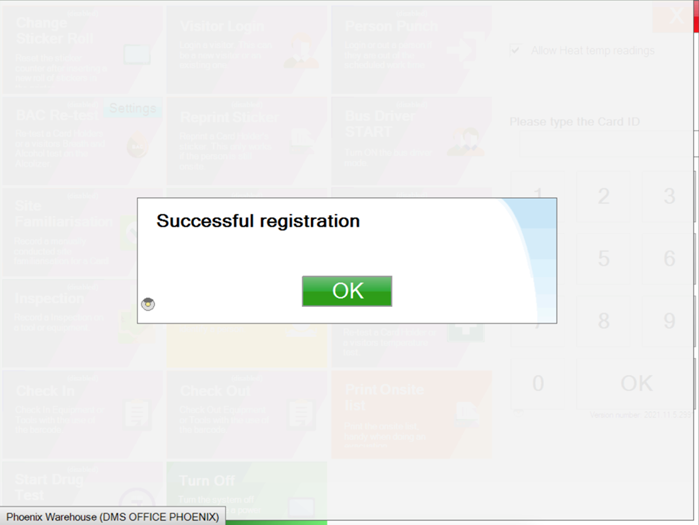

And the “Successful Registration” message will show on the Damstra Terminal’s screen.

Step 8
The user is now able to approach this Terminal, & stand in front of the Camera, to perform a login or logout.
Please ensure any additional prompts are followed on the Damstra Terminal’s screen.
