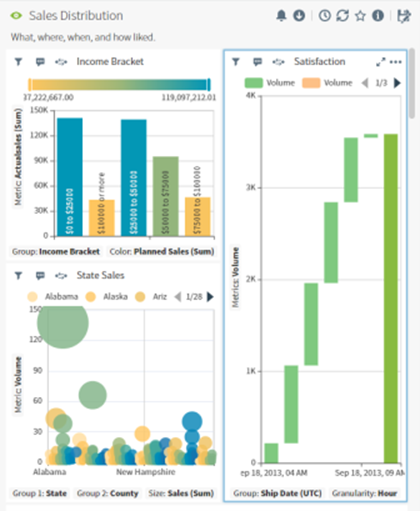

Insight’s dashboard layout is responsive, building on a grid format that presents your dashboards to Users with Viewer access a flexible, mobile-friendly layout on a variety of screen sizes. Damstra Insights rebuilds the dashboard layout on smaller screen sizes for any widget wider than 250 pixels. Preview the dashboard in View mode.

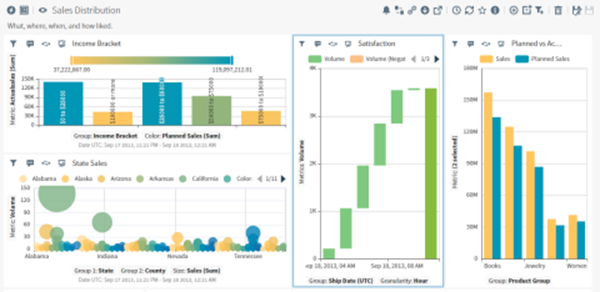

When you add widgets in Edit mode, Insights’ groups the widgets in rows and columns. These rows include up to 4 widgets side by side in a single row. When you add a fifth widget to a dashboard with four widgets in a row, Insights starts a new row with the new widget.

If you move, resize, or reposition widgets, then add a new one, Insights will add any new widgets to the first row that contains fewer than 3 widgets.

Manage your Dashboard Layout

Select the Dashboard Layout icon  to open the Dashboard Layout work area. Here you can enable and disable the locking mode, the responsive layout, and manage the minimum widget widths and heights.

Dashboard Layout Option	Description / Actions
	Locking mode: Enable and disable the toggle to control widget locking in this dashboard. See Lock and Unlock Widget Positions
	Responsive layout: Enable and disable the toggle to control the responsive layout for this dashboard.
Min widget width	By default, the width is 250 pixels. Set from 1 to 250 pixels. When the dashboard is in View mode, widgets are resized to no smaller than the defined size, based on browser window size.
Min widget height	By default, the height is 50 pixels. Set from 1 to 250 pixels. When the dashboard is in View mode, widgets are resized to no smaller than the defined size, based on browser window size.
