Summary:
Learn how to link a visual from one dashboard to another in Damstra Insights. This feature helps you quickly access related dashboards and optionally pass filters between them for consistent data analysis.

Steps:

Step 1: Open the dashboard you want to link from.

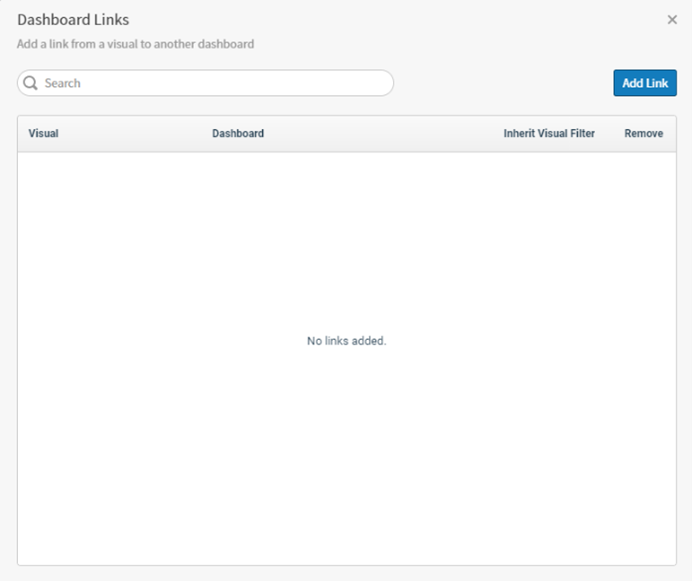

Step 2: Click the Dashboard Links icon on the dashboard icon bar.
Example: Click the Chain icon to open the Dashboard Links dialog.

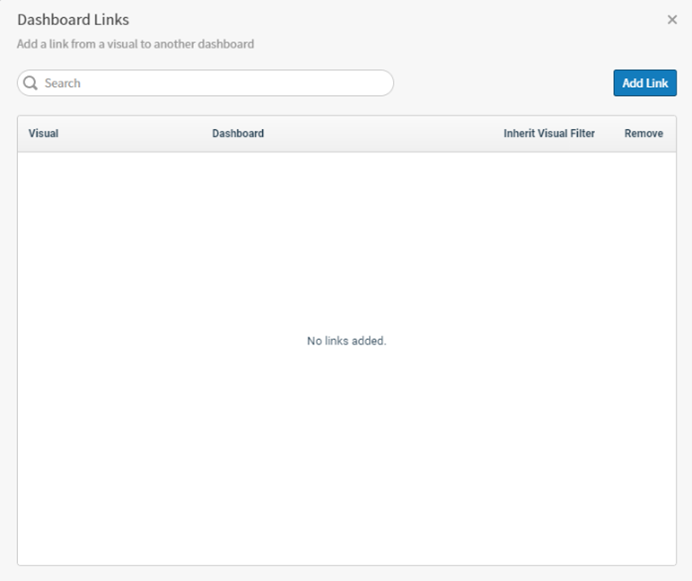

Step 3: In the Dashboard Links dialog, click Add Link.

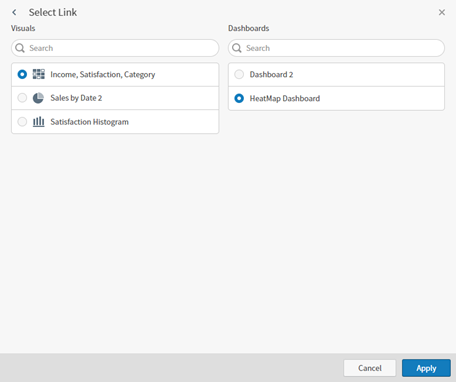

The Select Link dialog opens.

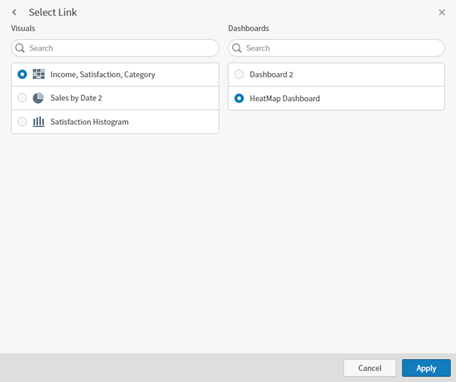

Step 4: Choose the visual and target dashboard you want to link, then click Apply.

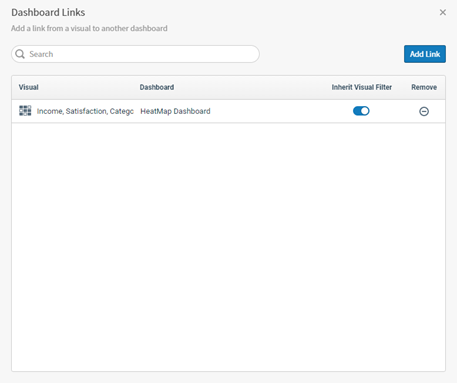

The Dashboard Link dialog displays the selected visual and dashboard link.

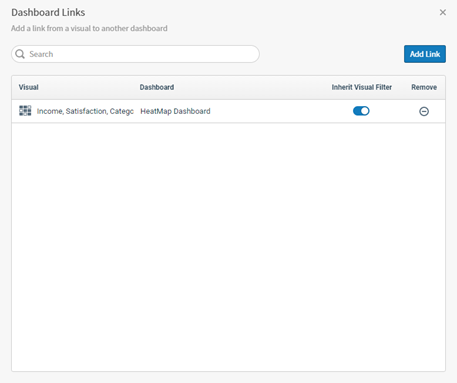

Step 5: Configure filter inheritance:

• By default, Inherit Visual Filter is enabled.
• To disable filter inheritance, toggle off the option.

Filters are only passed if both dashboards use the same data source configuration.

Step 6: Close the dialog.

Step 7: Save the dashboard to apply the link settings.

Step 8: Use the new link:

Go to "<dashboard>"

• On the visual’s drop-down menu, select Go to "" to navigate to the linked dashboard.
• Alternatively, click LINK from the dashboard context menu.

To delete a dashboard link:

Step 1: Open the dashboard containing the visual you want to unlink.

Step 2: Click the Dashboard Links icon on the dashboard icon bar.
The Dashboard Links dialog appears.

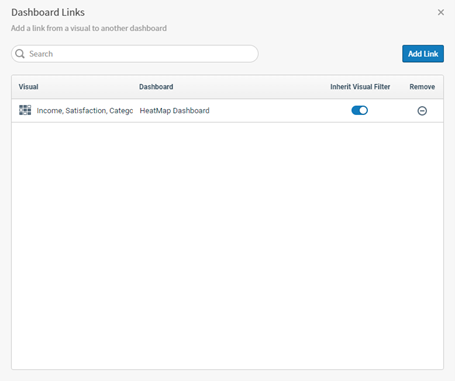

Step 3: In the dialog, select the visual and click the Remove icon.
The link is removed.

Step 4: Save the dashboard to confirm the changes.

You must remove all links to a dashboard before you can delete that dashboard.

Tips:

• Ensure you have permission to share and link dashboards before creating links.
• Use filter inheritance to maintain context when navigating between dashboards.
• Save your dashboard after linking or unlinking to preserve changes.
