Who is this article for?

Users responsible for maintaining hardware.

No special access or permissions are required.

This article walks you through the process of installing a replacement screen for your wall mounted terminal.

1. Preparation

You will need the following components and tools to complete this installation:

• Replacement screen
• Phillips head screwdriver
• Small flat head screwdriver (2-3mm)

2. Installation

To install the screen:

1. Switch off the unit at the mains.
2. Open the unit with the terminal key.

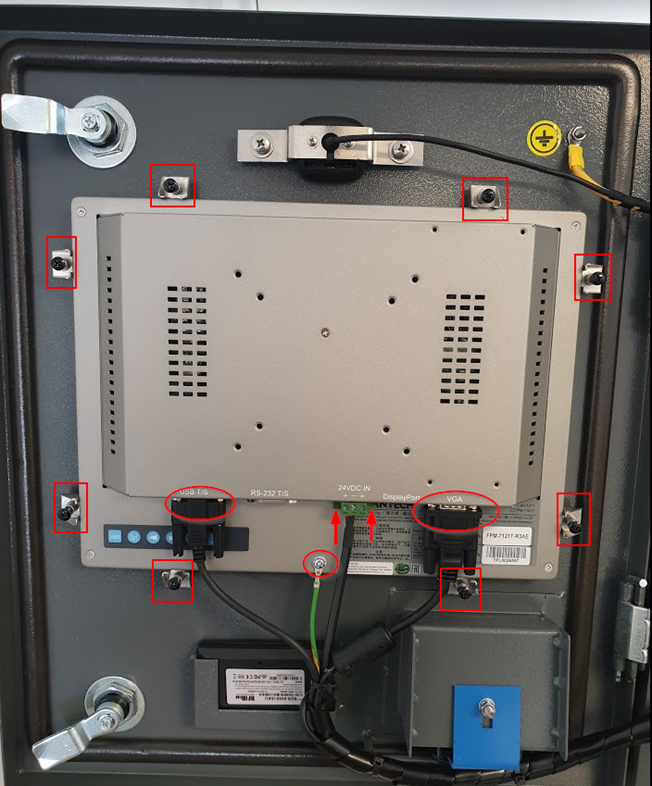

3. Disconnect all cables from the screen as shown in the image. Unscrew the USB T/S and VGA (or DisplayPort) cables if necessary. Ensure all connections are removed.
4. Unscrew the 24VDC IN cable from the bottom screws as indicated. Do not remove the red and black wires from the green connector. Use a small flathead screwdriver.
5. Remove the mounts marked in the image using a Phillips screwdriver. Keep the screws for the new screen. Note how they secure the screen against the cabinet.
6. Take out the screen from the front of the cabinet.
7. Install the new screen with brackets attached. Reconnect all leads securely, referring to the image if needed.
8. Close and lock the terminal, then restore power.

If you have any issues, please open a ticket with a detailed description and relevant photos.

3. Returning components

Please arrange to ship the replaced components to:

Damstra Technology
Unit 3/74 Mustang Drive,
Rutherford NSW, 2320
Ph: 1300 722 801
