Who is this article for?

Users responsible for maintaining hardware.

No special access or permissions are required.

This article walks you through the process of installing a replacement camera.

1. Preparation

You will need the following components and tools to complete this install:

• Replacement Camera
• Phillips Head Screwdriver
• Zip Ties
• Snips
• Terminal key

2. Installation

To install the camera:

1. Turn off all power to the terminal.
2. Open Terminal Cabinet.
3. Please unplug the USB cable labelled “Camera” from the mini PC.

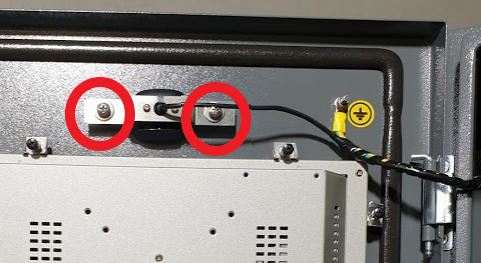

4. Please unscrew the two screws holding in the camera bracket.

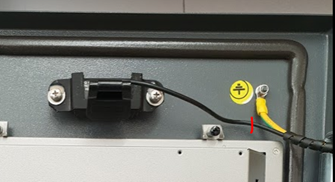

5. Please cut the USB cable near the line marked in red below and dispose of the fault camera.

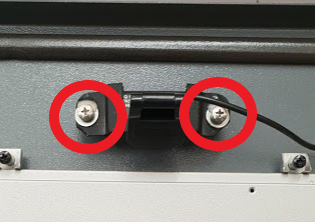

6. Screw in the replacement camera.

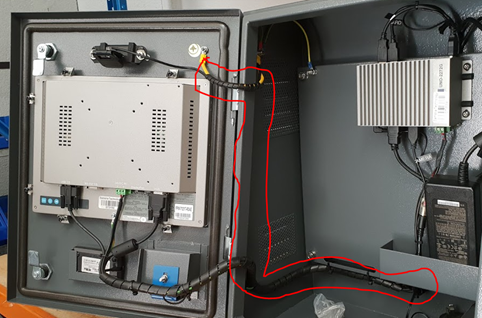

7. Please run the USB cable along the loom and zip tie it to hold it in the place.

8. Plug the new Cameras USB into the available USB port in the mini PC.
9. Please lock the terminal up and power up the terminal.

3. Returning components

Please arrange to ship the replaced components to:

Damstra Technology
Unit 3/74 Mustang Drive,
Rutherford NSW, 2320
Ph: 1300 722 801

You may use the original packaging and box that the replacement components were sent in for returning the unit.
